The Plan Editor is the main page you will be using in PlanStudio, It contains all the drawing tools and menus you will need to draft and edit your floorplans. If you are in the Plan Editor you should have already Created Your First Campus and you should see a satellite image available in the background.
Plan Editor Buttons
1. Menu Bar Buttons
The back button is in the top left hand corner of the window use this to return to the Plan Manager, The Building name and Floor name are the Window title in the center of the menu bar, In the top right hand corner there is a Help button which contains the in-app tutorials as well as links to the Account Management Page and announcements. The Settings Menu
is the last icon on the right.
2. Main Tool Bar
In the Main tool bar you have the undo and redo buttons on the left, and all of the drawing tools for creating & adorning your plans.
- The Selection Tool
- Walls
- The Openings Tool
- Features
- Zones
- Navigation
- Networks
- Equipment
- Annotations
On the right side of this menu you then have the Diagram preview button for viewing, editing and publishing your diagrams and other plans.
3. Sub Tool Bar
In the Sub Tool Bar you will see the name of the current tool you are using in the left, The tool bar will have a selection of tools to interact with your current selection such as: clear current selection, delete, copy, cut & paste as well as an option to center the selected object on your screen. The Sub Tool Bar will also provide you with different options depending on the current tool in use.
4. The Side Panels
located on the right of the screen contains:
- The Tool settings and inspector panels that work alongside the drawing tools you will be using.
- The Browser panel for viewing your layers and objects currently placed in the drawing.
- The Plans Panel where you can bring in a site plan or another floor as an underlay to your current floor plan, as well as quick switch to other plans in the campus.
- Camera Rotation menu, for rotating the screen as well as locking rotation when using a touch screen device.
- The Snapping settings.
- The library panel for changing the current library you are working in.
5. The Bottom Bar
This section of the Plan Editor houses the save indicator down the bottom left which will show you the current save status for your job, as well as the version number and a scale bar showing the current scale of the plan. In the bottom right corner you have the Pink Plus button used to add objects to your plans, such as photos, graphics and documents, and beside this (if enabled through the Preferences) you will have the virtual shift key, allowing you to make multiple selections when on a touch screen device.
Settings

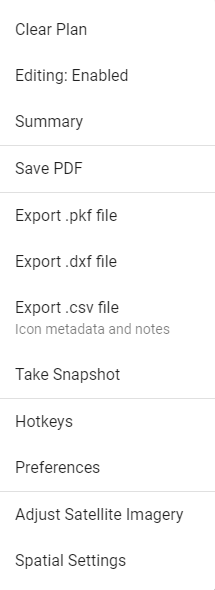

Clicking the Settings button will open a menu with a few options, and settings you can change to suite your personal preferences.
|
Preferences
The Preferences menu allows you to change some of the settings in the software, such as the units of measurement, the size of equipment on your screen, the camera defaults for your device as well as the touch screen settings for users with and without a stylus. For touch screen users you can also enable a Virtual Shift Key, to assist with selecting multiple objects in a plan, there are also some display options. These preferences will vary between users depending on your device, your permissions level as well as the current version of the software. In the settings you have the option to adjust satellite imagery. If you want to change satellite image provider as well as a spatial settings button to view the geotags for your floorplan.
